TOUPIE CT100

The CT100 is a versatile machine designed for a diverse range of wood milling jobs. Its features include:

  • Diverse Milling Jobs: Ability to perform various milling jobs on wood, including those with tilted spindle.
  • Milling Along Guide Lines: Option for milling along guide lines with manual feed.
  • Automatic Feeding: Ability to use an automatic feeder for efficient production of moldings, boards, skirting boards, panels, and other molded products.
  • Tenoning: Ability to perform tenon cutting using a tenoning carriage.
  • Curved Milling: Option for curved milling using a template, with manual feed for precise work.

The Spindle moulder CT100 therefore offers a complete solution for a wide range of milling jobs in the woodworking sector, providing flexibility and precision for various applications.

Complies with the latest CE regulations.

Description

Technical Specifications



Technical specifications





Engine

V/KW

400/4

Rotation speed

rpm

2500/3500/6000/8000/10000

Shaft diameter

mm

30 intercambiabile

Spindle Stroke

mm

140

Table height

mm

890

Table dimensions

mm

710×640

Cart dimensions

mm

1000×350

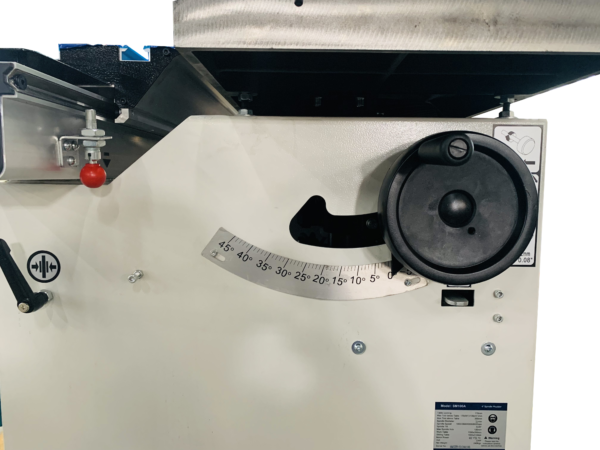

Router tilt

mm

-5° a +45°

Shaft length

mm

130

Carriage Size

mm

1000

Maximum Tool Size Retractable Under Workbench

mm

175

Max. Table Opening

mm

220

Inlet hole diameter

mm

100

Maximum machine height

mm

1300

Maximum machine height

mm

1300

Overall dimensions

cm

1150x900x1085

Packaging dimensions

mm

1740x230x125

Weight

kgm

270
