La SILVER 410C MACO2L è la scelta ideale per falegnami esperti e officine artigianali ad alta produttivitĂ che cercano precisione, robustezza e facilitĂ d’uso in un’unica macchina compatta.
It offers reliable performance in both surface jointing and thickness planing operations.
Thanks to the one-hand table lifting system, switching between the two working modes is quick and intuitive, without the need to remove the fence.

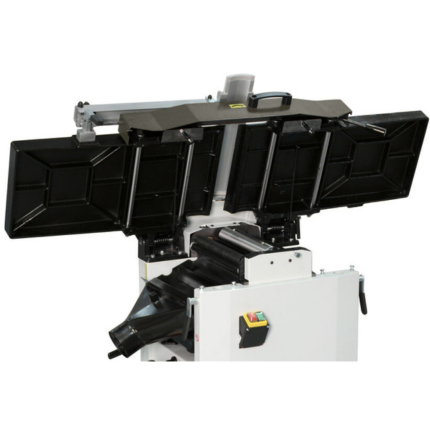

The extra-large extruded aluminum fence, equipped with centered controls and cam-lock system, allows immediate and stable adjustments, even for the most demanding tasks.

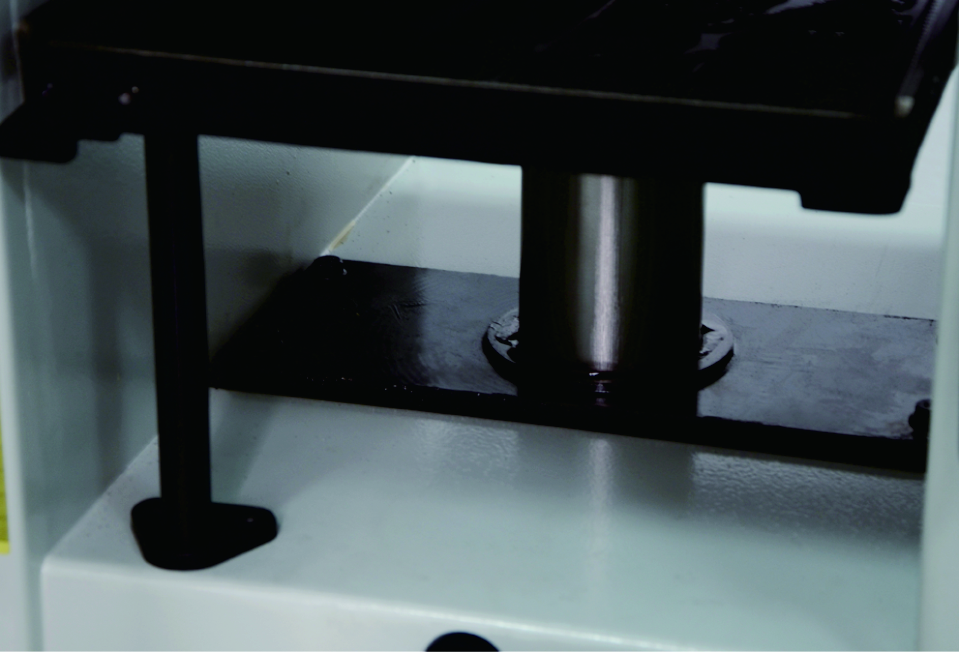

The reinforced central column structure ensures excellent stability and precision during every operation, while the integrated dust extractor guarantees a cleaner and more efficient workspace, effectively handling chips in both working modes.
Complies with the latest CE regulations.
CONFIGURATIONS AVAILABLE:
| Technical specifications | ||
| Voltage / Power | V/Kw | 380/4 |
| Table width | mm | 410 |
| Maximum planing depth | mm | 4 |
| Dimensioni del tavolo di lavoro a spessore | mm | 650×407 |
| Minimum length of the piece | mm | 160 |
| Maximum height of the thickness | mm | 4-225 |
| Feed speed | m/min | 7 |
| Diametro albero pialla | mm | 70 / 3 coltelli |
| Planer shaft speed | rpm | 5500 |
| Lunghezza piani a filo | mm | 1659 |
| Net/gross weight | kg | 294/352 |
| Packaging dimensions | mm | 1710x740x1117 |
| Exit table | mm | 348 |
| Inlet hole diameter | mm | 120 |
